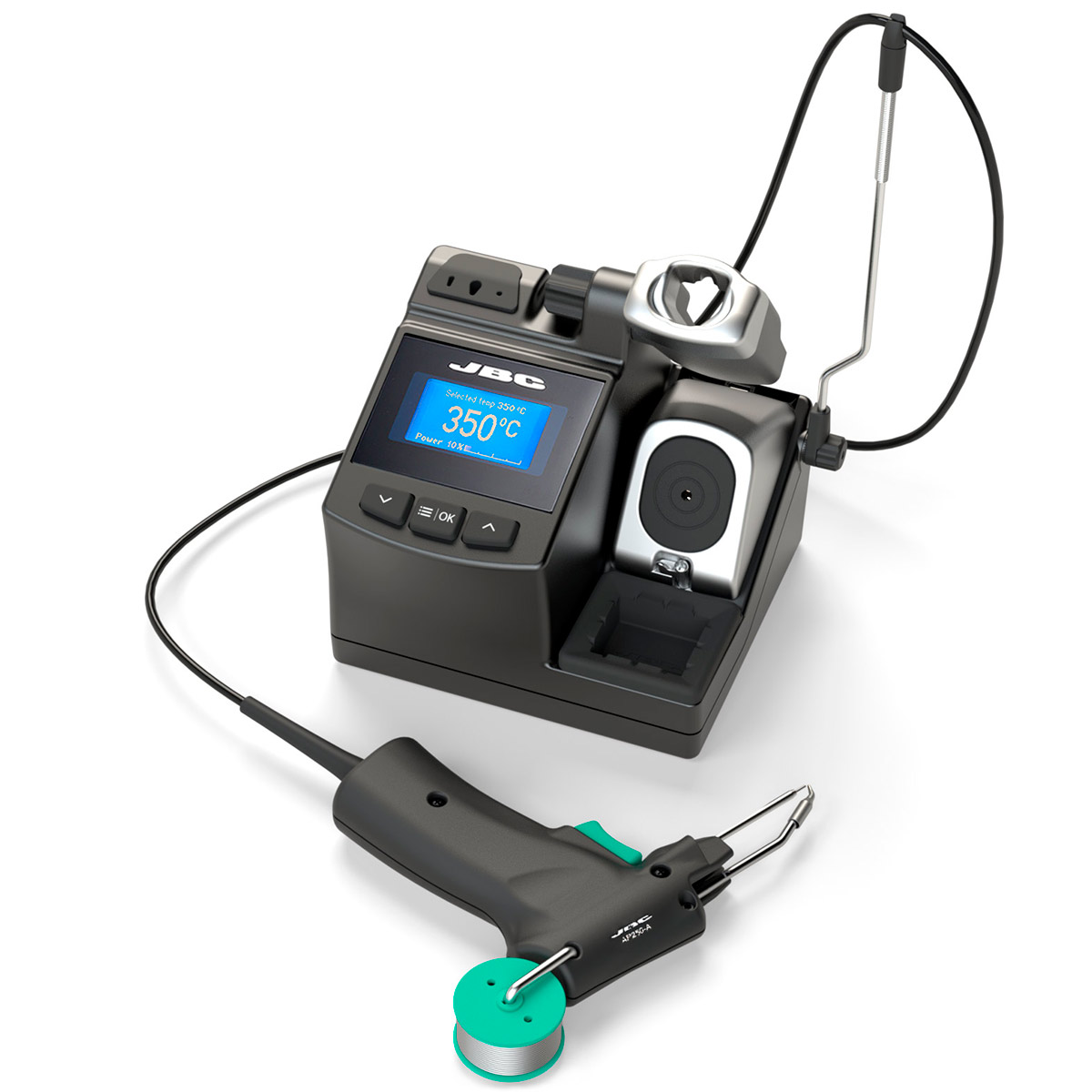

JBC CA-Q 出锡焊台
对于需要徒手操作的应用，如对 PCB、连接器或变压器焊接电线，以及密集焊接 THT 元件，它是理想的焊台。
凭借 JBC 的最高效焊接系统和额外的睡眠和休眠模式，有助于延长焊嘴的寿命，它能提供最好的焊接质量。
它配备了可与 C250 焊筒一起工作的 AP250 出锡焊铁。
技术参数
AC适配器:
9.2 x 9.2 x 10.2 in / 6.94 lb
环境工作温度:
10 to 50 C / 50 to 120 F
峰值功率:
130 W - 23,5 V
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
USB-B:
Software PC / Firmware update
Voltage (AC):
Ref. CA-1QE - 120 V
Package:
234 x 234 x 258 mm / 3.15 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Equipotential bonding:
Optional connection to EPA
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
150 x 175 x 145 mm / 2,67 kg
Wire diameter:
0.8 to 1.5 mm / 0.02 to 0.07 in
