DDPE-2QB精密焊台
——
DDPE-2QB精密焊台

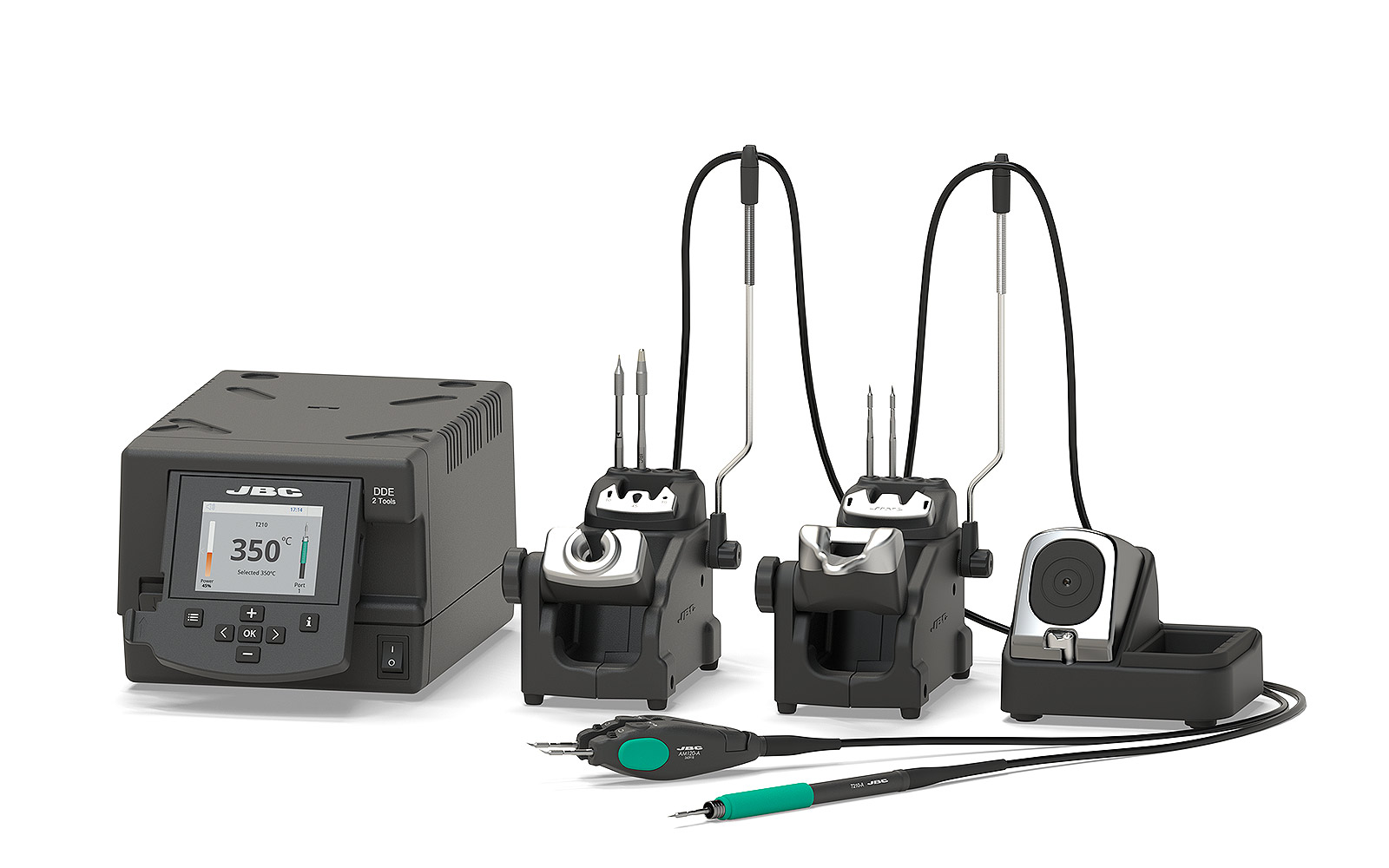

DDPE 精密返修焊台是使用手动焊接工具快速、精确地对芯片组件和小外形 IC 进行 SMD 返修的完美解决方案。
DDE 控制单元同时管理多达 2 个工具，并且完全兼容 10 种不同的 JBC 工具。请检查以下兼容工具的完整列表。
该返工焊台配备了 T210 精密专用手柄和 AM120 可调微型镊子。
这两种工具从尖端到握把的短距离能够提供最佳的精度处理，即使是在显微镜下。
精密手柄 T210 与 C210 焊筒一起工作，AM120 与 C120 焊筒一起工作，其超薄的厚度允许在拥挤的 PCBA 上返工部件，而不会干扰附近的部件。
带有实用的焊筒支架 SCH-A，不同的焊筒总是存放在附近。
技术参数
AC适配器:
18.7 x 14.5 x 7.7 in / 19.4 lb
环境工作温度:
10 to 40 C / 50 to 104 F
峰值功率:
150 W per tool � 23.5 V
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. DDPE-1QB - 120 V
Package:
474 x 368 x 195 mm / 8.79 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
See individual modules
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update Soldering Graphics management
Robot:
RS-232 remote control or Smart Fume Extractor connection.
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC, this new and unique feature
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
