DDVE-2QC精密焊台

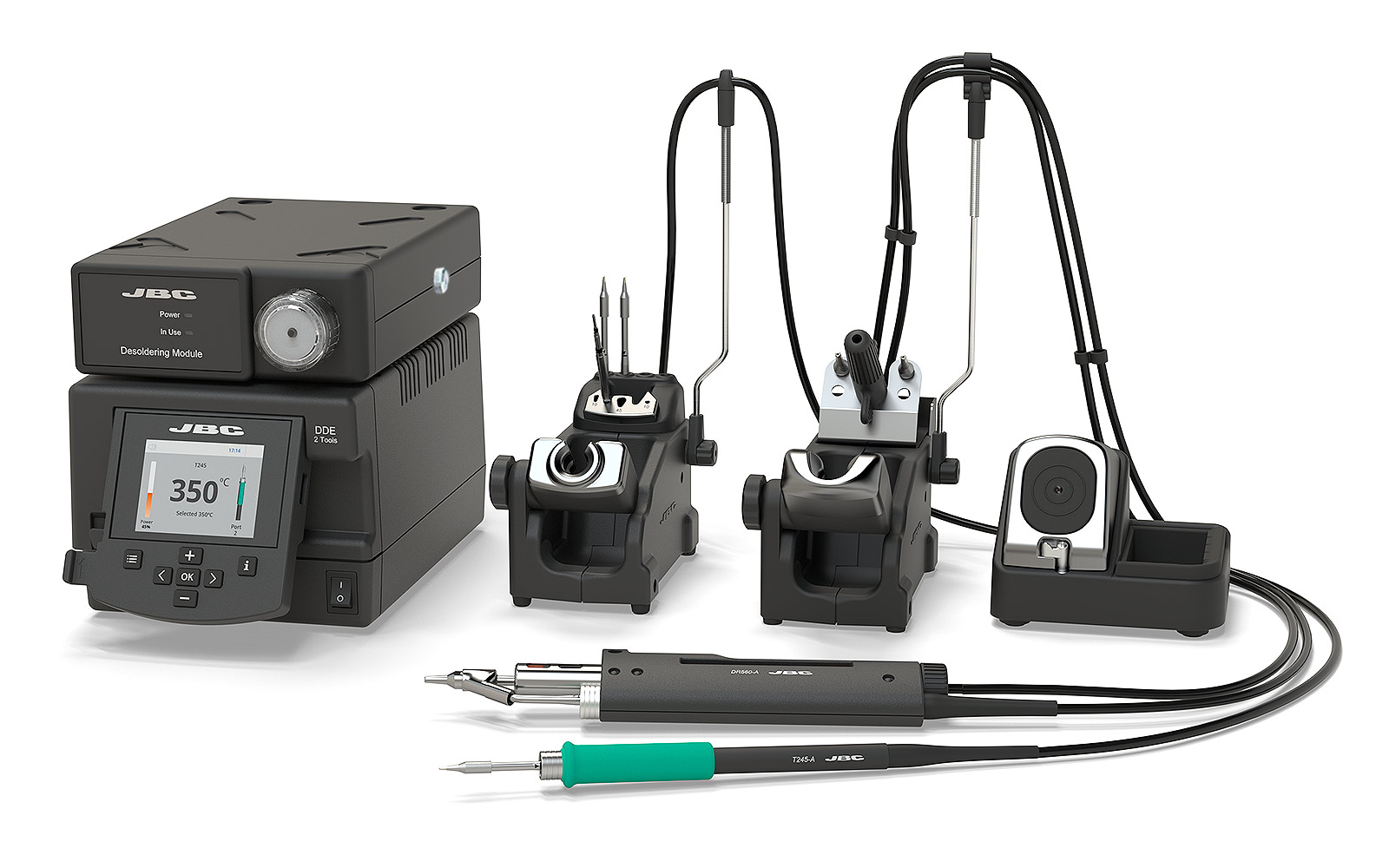

DDVE 焊台是一个完整的解决方案，带 T245 通用手柄和 DR560 脱焊焊铁。
DDE 控制单元同时管理多达 2 个工具，并且完全兼容 10 种不同的 JBC 工具。请查看以下兼容工具的完整列表。
MVE 气动脱焊模块可产生所需真空，以使用 DR560 从电镀通孔和表面安装焊盘上去除熔融焊料。（需要清洁干燥的压缩空气供应）
凭借 JBC 的最高效焊接系统和额外的睡眠和休眠模式，有助于延长焊嘴的寿命，它能提供最好的焊接质量。
它具有所有 Excellence 系列的优点，如焊台定制，完全控制焊接过程和远程工作管理。
带有实用的焊筒支架 SCH-A，不同的焊筒总是存放在附近。
产品构成
焊台
Stand for DR560 , Stand for T210 & T245 Handles
技术参数
AC适配器:
14.5 x 18.7 x 7.7 in / 21.72 lb
环境工作温度:
10 to 40 C / 50 to 104 F
峰值功率:
150 W per tool � 23.5 V
真空:
90% / 680 mmHg / 26.8 inHg
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. DDVE-1QC - 120 V
Package:
368 x 474 x 195 mm / 9.85 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
See individual modules
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update Soldering Graphics management
Robot:
RS-232 remote control or Smart Fume Extractor connection.
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC,
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
Air pressure supply:
up to 6 bar
