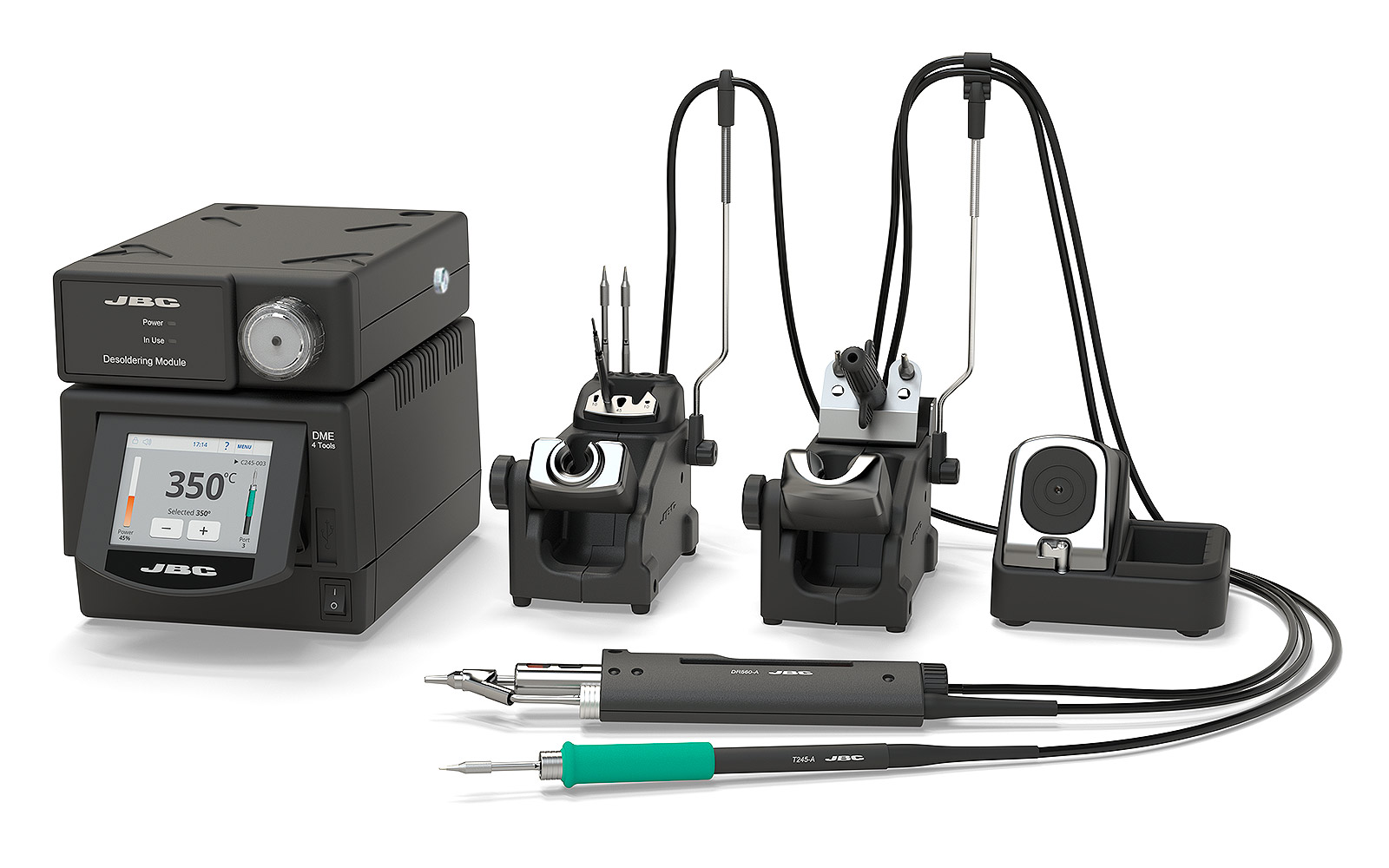

DMVE-2QA精密焊台
DME 同时管理多达 4 个工具，并且完全兼容 10 种不同的 JBC 工具。请查看以下兼容工具的完整列表。
MVE 气动脱焊模块在整个脱焊过程中必不可少。需要清洁干燥的压缩空气。
凭借 JBC 的最高效焊接系统和额外的睡眠和休眠模式，有助于延长焊嘴的寿命，它能提供最好的焊接质量。
它具有所有 Excellence 系列的优点，如焊台定制，完全控制焊接过程和远程工作管理。
DMVE 与 DR560 脱焊焊铁和 T245 手柄一起工作。
产品构成
焊台
Stand for DR560 , Stand for T210 & T245 Handles
技术参数
AC适配器:
14.5 x 18.7 x 7.7 in / 23.40 lb
环境工作温度:
10 to 40 C / 50 to 104 F
局域网（以太网）:
Remote control / Traceability
峰值功率:
160 W per tool � 23.5 V
真空（6巴）:
90% / 680 mmHg / 26.8 inHg
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. DMVE-1QA - 120 V
Package:
368 x 474 x 195 mm / 10.62 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
See individual modules
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update.
Robot:
RS-232 remote control or Smart Fume Extractor connection
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC, this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
PS:
Interconnection of up to 5 PSE control units to manage up to 24 tools simultaneously.
Air pressure supply:
up to 6 bar
Flow rate (at 6 bar):
15 SLPM
