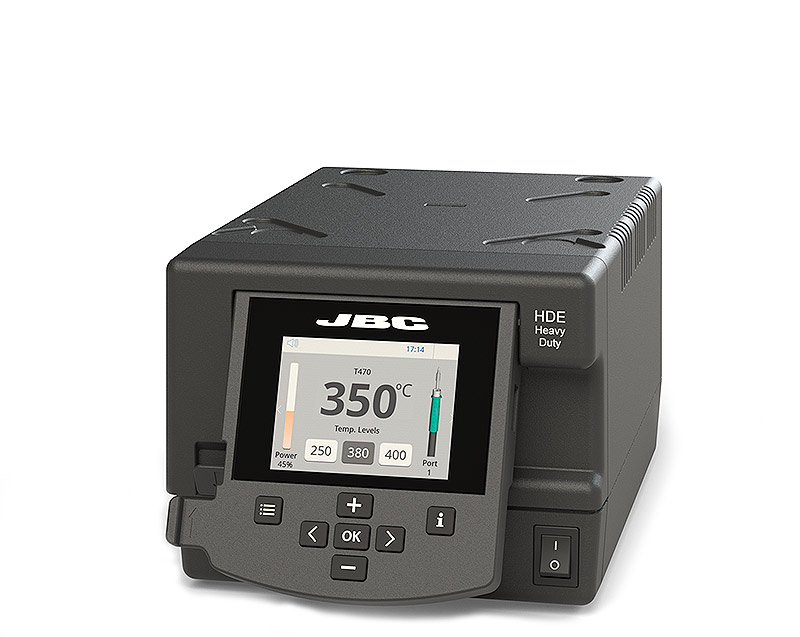

HDE 焊台是 JBC 系列中最强大的焊接设备。它的新电源（SMPS）能够确保高效率，并提高了对需要大量热量的焊接应用的性能。
它可与 JBC 的最有效焊接系统和智能睡眠和休眠模式一起工作。
它可与 T470 手柄和 C470 焊筒兼容。
它还有一套重型镊子套件 KHT470A，能够提供 T470 手柄两倍的功率（需要 2 个 HDE-U 控制单元）。
其易于使用的菜单可配置为 10 种不同语言：英语、德语、西班牙语、法语、意大利语、葡萄牙语、俄语、日语、韩语和中文。
技术参数
AC适配器:
14.5 x 18.7 x 7.7 in / 13.73 lb
环境工作温度:
10 to 40 C / 50 to 104 F
峰值功率:
250 W - 42 V
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
Selectable Temperature:
90 to 500 C / 190 to 930 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. HDE-1UD - 120 V
Package:
368 x 474 x 195 mm / 6.23 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
148 x 120 x 232 mm / 2.6 kg
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update Soldering Graphics management
Robot:
RS-232 remote control or Smart Fume Extractor connection.
Dynamic Soldering Profiles:
This new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the parts to join through all the phases of the soldering process.
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
