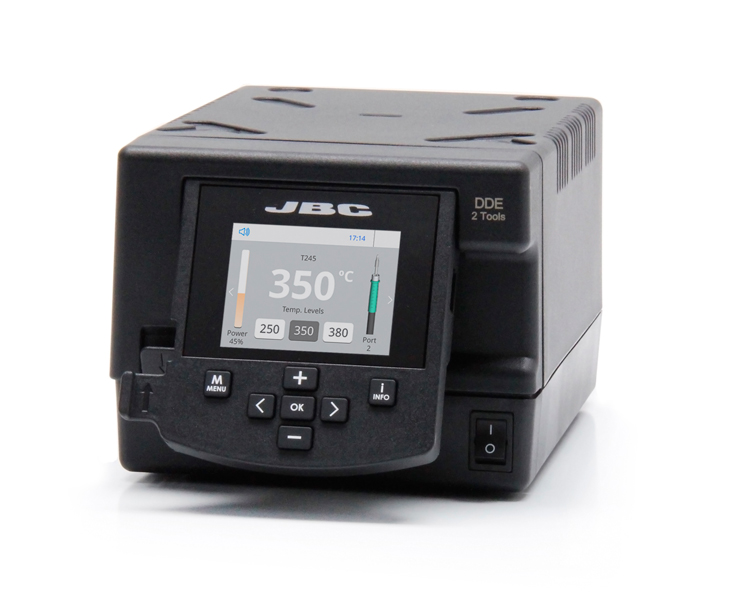

DDE-2C控制单元
——
DDE-2C控制单元
DDE 同时管理多达 2 个工具，并与 10 个不同的 JBC 工具完全兼容。
它与 JBC 专用加热系统一起工作，具有智能 Excellence 系列的优点，如焊台定制、完全控制焊接过程和远程工作管理。
其易于使用的菜单可配置为 10 种不同的语言：英语、德语、西班牙语、法语、意大利语、葡萄牙语、俄语、日语、韩语和中文。
技术参数
AC适配器:
ref. DDE-9C - 100 V
环境工作温度:
10 to 40 C / 50 to 104 F

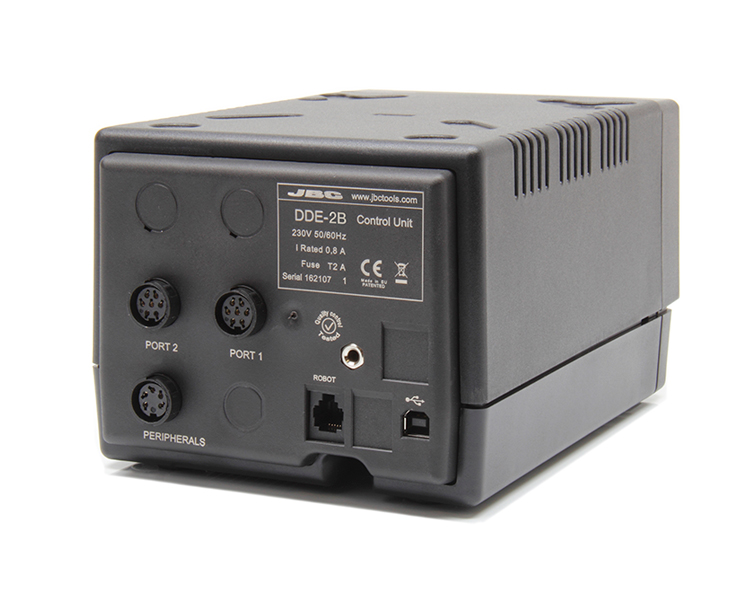

通信连接器:
USB-A / USB-B / Peripherals
尺寸:
148 x 120 x 232 mm
空闲温度.稳定性（静止空气):
1.5 C (3 F)
输入保险丝:
4A / 2A / 5A
输出峰值功率:
150W per tool
包装尺寸:
278 x 204 x 208 mm
包装重量:
4.27 kg
峰值功率:
150 W per tool � 23.5 V
机器人连接器:
RJ12 for RS-232 protocol
温度选择:
90-450 C (190-840 F)
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
电压:
120V / 230V / 100V
重量:
3.82 kg
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. DDE-1C - 120 V
Package:
258 x 328 x 208 mm / 4.27 kg
Dimensions and weight:
AUTOMATIC DIMENSIONS AND WEIGHT
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
148 x 120 x 232 mm / 3.82 kg
USB-B (rear):
Software PC / Traceability

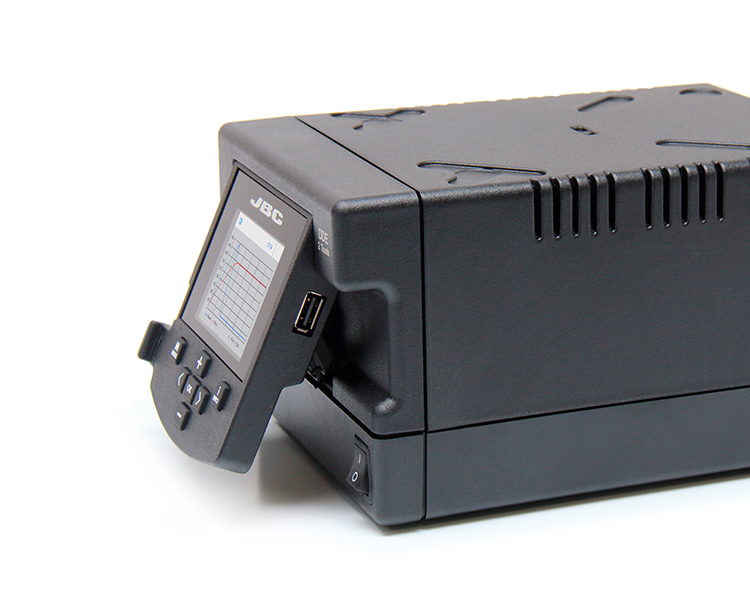

USB-A (front):
Firmware update Soldering Graphics management
Robot:
RS-232 remote control or Smart Fume Extractor connection.
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC,
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
