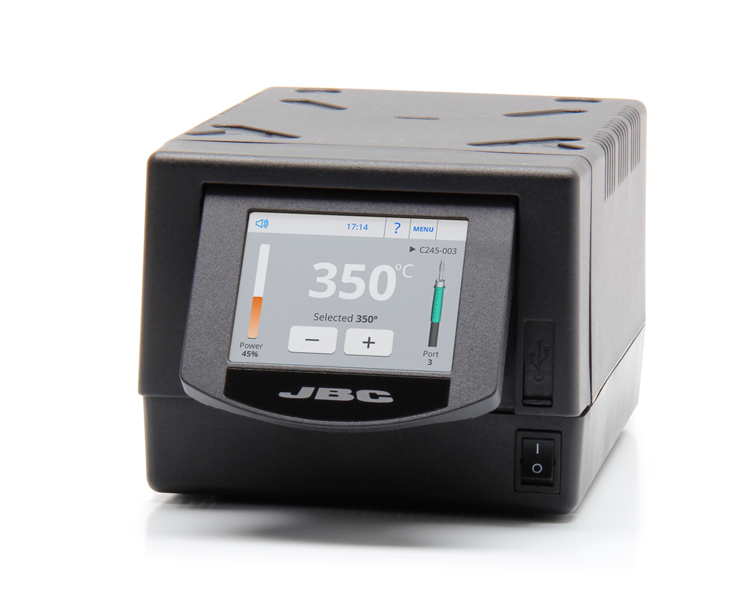

DME-2A控制单元
——
DME 同时管理多达 4 个工具，并且完全兼容 10 种不同的 JBC 工具。请查看以下兼容工具的完整列表。
它与 JBC 专用加热系统和智能卓越系列一同工作，如焊台定制、完全控制焊接过程和远程工作管理。
包括纳米焊接配置文件功能，能够避免焊接陶瓷芯片组件如 MLCC 时的热冲击。
易于使用的菜单可帮助您实时监控工作：图形、部分计数器或同时控制端口。
DME 还为您提供额外应用程序，为您的工作提供支持：USB 显微镜、文件存储、单元转换器、视频等。
使用基本工作系统需要 1 个支架、1 个工具和 1 个焊筒。
技术参数
AC适配器:
10.2 x 12.9 x 8.2 in / 10.96 lb
环境工作温度:
10 to 40 C / 50 to 104 F
通信连接器:
USB-A / USB-B / Peripherals
尺寸:
148 x 120 x 232 mm
空闲温度.稳定性（静止空气):
1.5 C (3 F)
输入保险丝:
6A / 3.15A / 8A
局域网（以太网）:
Remote control / Traceability
输出峰值功率:
160W per tool
包装尺寸:
278 x 204 x 208 mm
包装重量:
4.97 kg
峰值功率:
160 W per tool � 23.5 V
PS接口:
RJ12
机器人连接器:
RJ12
温度选择:
90-450 C (190-840 F)
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
电压:
120V / 230V / 100V
重量:
4.57 kg
Selectable Temperature:
90 to 450 C / 190 to 840 F
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. DME-1A - 120 V
Package:
258 x 328 x 208 mm / 4.97 kg
Temperatue levels:
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection:
Keep station parameters protected against unauthorized access.
Sleep and Hibernation mode:
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Control Unit:
148 x 120 x 232 mm / 4.57 kg
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update.
Robot:
RS-232 remote control or Smart Fume Extractor connection
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC, this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
PS:
Interconnection of up to 5 PSE control units to manage up to 24 tools simultaneously.
