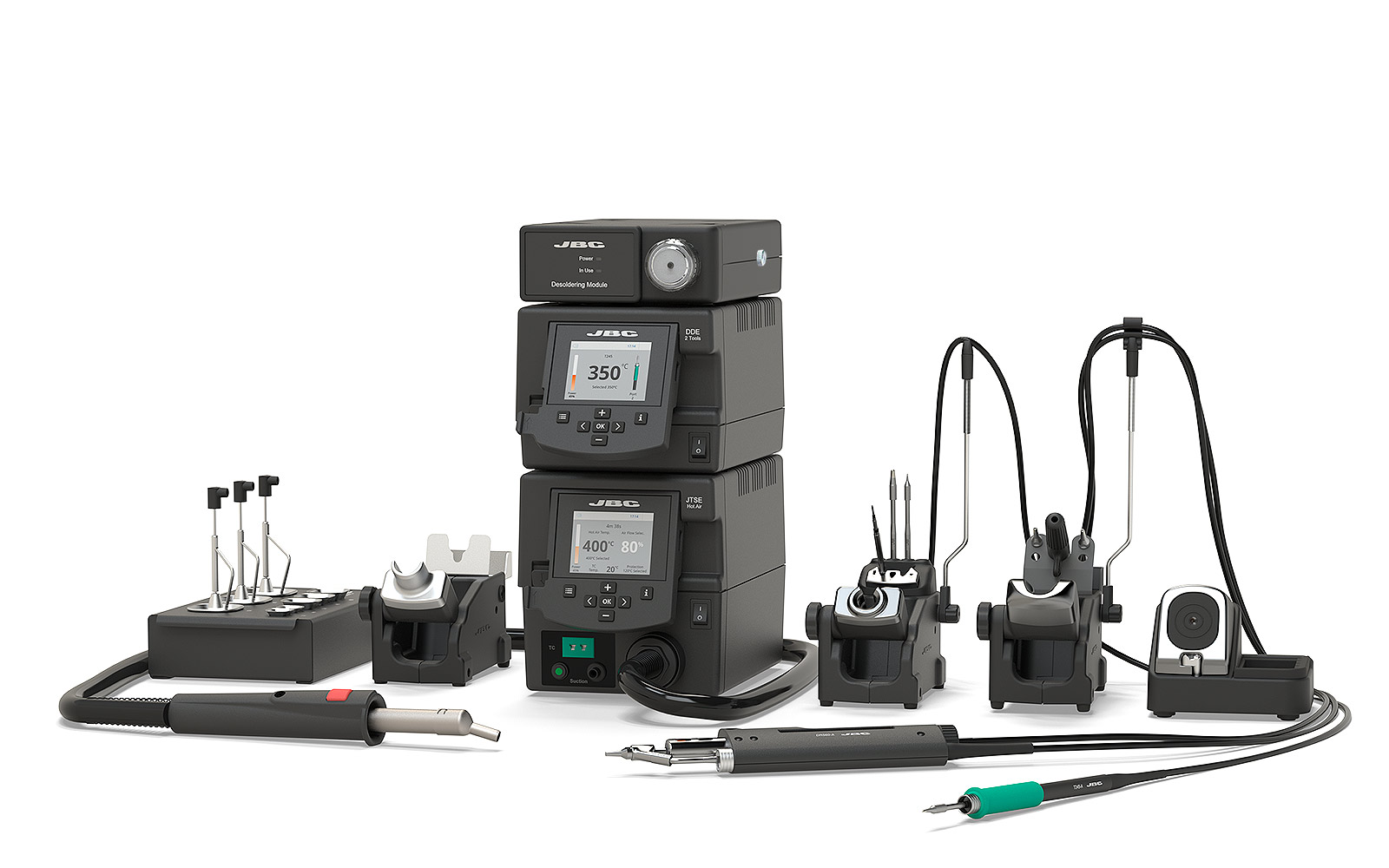

RMVE-2QE带气动泵的完整返工焊台
焊接和返工以及使用热风的最快和最安全的解决方案。它由可堆叠模块和所有必要的附件组成，使您的工作更容易。
RMVE 具有 Excellence 系列的所有优点。凭借 JBC 的最高效焊接系统和额外的睡眠和休眠模式，有助于延长焊嘴的寿命，它能提供最好的焊接质量。
DDE 同时管理多达 2 个工具，并与 10 个不同的 JBC 工具完全兼容。请查看以下兼容工具的完整列表。
MVE 气动脱焊模块在整个脱焊过程中必不可少。
重要提示：需要清洁干燥的压缩空气。
DR560 脱焊焊铁，JT-TA 加热器软管组。
技术参数
AC适配器:
14.6 x 18.9 x 15.0 in / 36.60 lb
环境工作温度:
10 to 40 C / 50 to 104 F
流量 (MVE-A):
15 SLPM
焊嘴与接地间电阻:
<2 ohms
焊嘴与接地间电压:
<2 mV RMS
6巴真空（MVE-A):
90% / 680 mmHg / 26.8 inHg
Max. and min. temperature:
Limit the temperature range in which the operator is allowed to work.
Voltage (AC):
ref. RMVE-1QE - 120 V
Package:
370 x 480 x 380 mm / 16.60 kg
PIN protection:
Keep station parameters protected against unauthorized access.
USB-B (rear):
Software PC / Traceability
USB-A (front):
Firmware update.
Robot:
RS-232 remote control or Smart Fume Extractor connection
Dynamic Soldering Profiles:
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC (DDE), and for automatic soldering of SMD components (JTSE),
Soldering graphics:
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
10 user interface languages:
English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.
Dimensions/Net weight:
See individual modules
Temperature (DDE):
90 to 450 C / 190 to 840 F
Temperature (JTSE):
150 to 450 C / 300-840 F
Air Flow (JTSE):
5 to 50 SLPM
Operation modes (JTSE):
Heating / Cooling
Sleep and Hibernation mode (DDE):
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Temperature levels (DDE):
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Pedal (JTSE):
Optional tool control
Aux (JTSE):
Peripheral expansion
Peak Power (DDE):
150 W per tool � 23.5 V
Peak Power (JTSE):
700W
Vacuum (JTSE):
30% / 228 mmHg / 9 inHg
Type K thermocouple (JTSE):
Plug an external TC to the controller and place it close to the component to be soldered or reworked to have the most precise temperature control regardless of the distance to the nozzle.
Air pressure supply (MVE):
up to 6 bar
