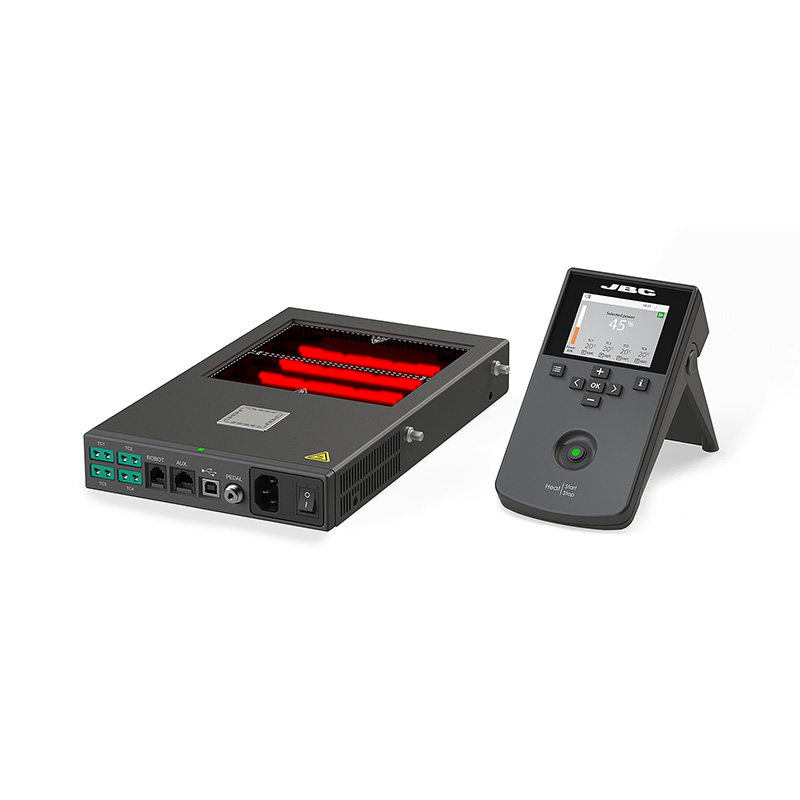

PHSE-2A预热装置
——
PHSE-2A预热装置
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PBCA by the use of control and protection thermocouples, without exceeding the recommended limit levels in each application.
The equipment incorporates three recommended predefined profiles:
- For 1.6mm PCB with 2 layers.
- For 1.6mm PCB with 4-6 layers.
- For 2.2mm PCB with 6 or more layers.
In addition, it features 22 customizable profiles.
Up to four thermocouples can be connected which enable the operator to work in any of the three work modes.
It has two independent work zones which define a heating area of 130 x 135 mm (5.1 x 5.3 in) and works with Infrared technology.
With the software JBCSuite the preheater can be synchronized with other JBC hot-air, soldering as well as fume extractor equipment in order for them to work jointly and to perform your rework process optimally.
