PHSE-2KA预热装置
——
PHSE-2KA预热装置

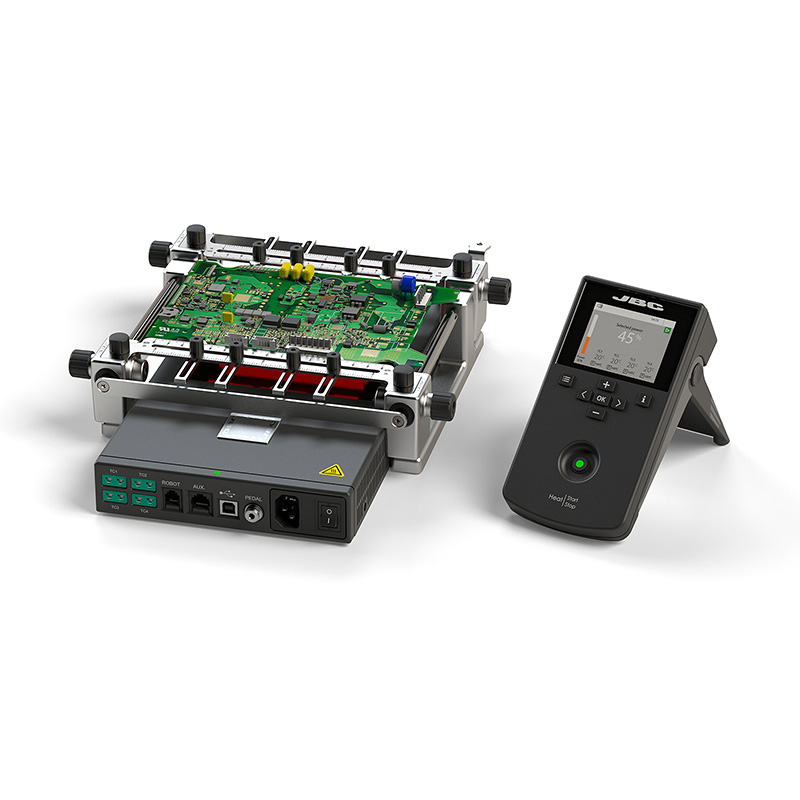

It comes with a close loop thermocouple controlled Infrared Preheater Unit and with a PCB Support.
The Infrared Preheater PHSE is used as a secondary heat source to reduce the amount ofheat supplied by the main soldering tool, reducing thermal shock to components and PCBs.
The PCB Support PHS-S is perfectly adapted to any type of PCBs by means of its many adjustable parts and its 3 adjustable clearance positions 28, 50 or 70 mm (1.1, 2 or 2.8 in).
技术参数
AC适配器:
130 x 135 mm (5.1 x 5.3 in) - 2 zones
尺寸（加热主机）:
195 x 288 x 41 mm
保险丝:
8 A T (100V & 120V), 4 A T (230V)
加热面积:
65 x 135 mm (2.6 x 5.3 in) - 1 zone
JBC设定的温度曲线:
3 profiles ( 2, 3 or 4 steps)
最大功率:
500W
最大工作时间:
600 min. or indefinite
包装尺寸:
368 x 368 x 195 mm
包装重量:
5.82 kg
温度测量:
Thermocouple type K
温度范围:
50 to 250C (120 to 482F)
用户温度分布:
20 (up to 6 steps for each)
电压:
Ref. PHS-1KC: 120 V
重量:
4.78 kg
